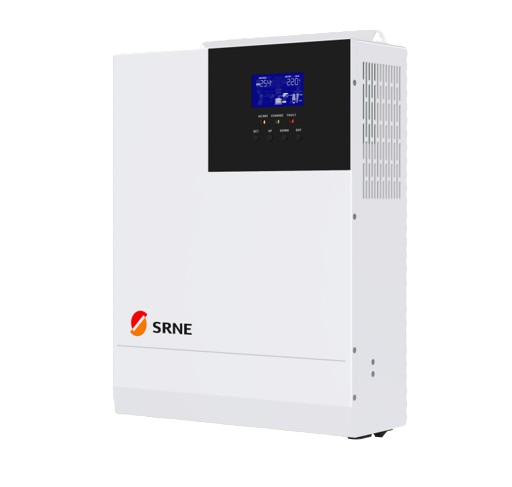

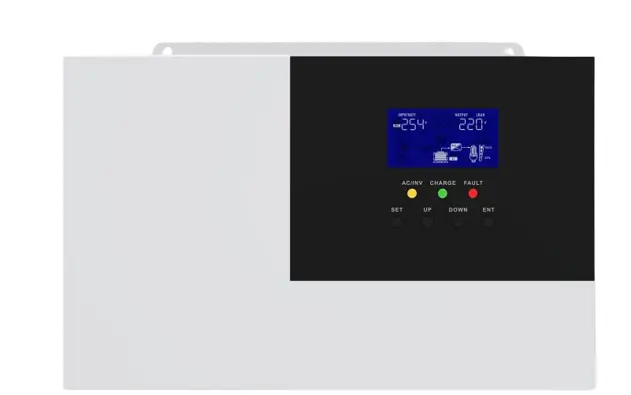

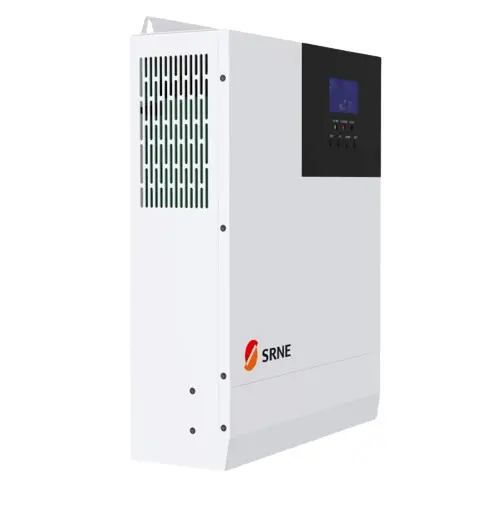

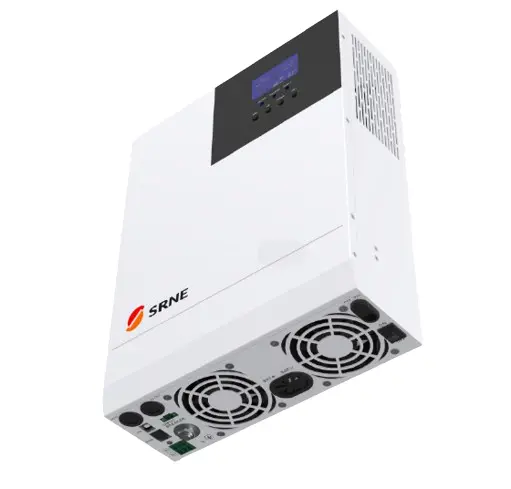

SRNE HF Series Off Grid Solar Inverter 24V/3KW
2.Two output modes: mains bypass and inverter output; uninterrupted power supply.
3.Power saving mode available to reduce no-load loss.
4.Intelligent variable speed fan to efficiently dissipate heat and extend system life.
5.Lithium battery activation design, allowing access of lead-acid battery and lithium battery.Technical parameters
Models | SR-HF2430S80-H |
AC mode |
|
Rated input voltage | 220/230Vac (170Vac~280Vac) ±2%；(90Vac-280Vac)±2% |
Input voltage range | 50Hz/ 60Hz (Auto detection) |
Frequency | 47±0.3Hz ~ 55±0.3Hz (50Hz)/57±0.3Hz ~ 65±0.3Hz (60Hz); |
Frequency Range | Circuit breaker |
Overload/short circuit protection Efficiency | >95% |
Conversion time (bypass and inverter) AC reverse protection | 10ms (typical) Available |
Maximum bypass overload current | 30A |
Inverter mode |
|
Output voltage waveform | Pure sine wave |
Rated output power (VA) | 3300 |
Rated output power (W) | 3300 |
Power factor | 1 |
Rated output voltage (Vac) | 230Vac |
Output voltage error | ±5% |
Output frequency range (Hz) Efficiency | 50Hz ± 0.3Hz/60Hz ± 0.3Hz |
Efficiency | >92% |
Overload protection | (102% < load <125%) ±10%: report error and turn off the output after5 minutes; (125% < load < 150%) ± 10%: report error and turn off the output after 10 seconds; Load >150% ±10%: report error and turn offthe output after 5 seconds; |
Peak power | 6000 |
Loaded motor capability | 2HP |
Output short circuit protection | Circuit breaker |
Bypass breaker specifications | 30A |
Rated battery input voltage | 24V (Minimum starting voltage 22V) |
Battery voltage range | 20.0Vdc~33Vdc ± 0.6Vdc (Under-voltage alarm/shutdown voltage/over-voltage alarm /over-voltage recovery... settable on LCD screen) |
Power saving mode | Load ≤50W |
AC charging |
|
Battery type | Lead acid or lithium battery |
Maximum charge current | 80A |
Charge current error | ± 5Adc |
Charge voltage range | 20.0Vdc–33Vdc |
Short circuit protection | Circuit breaker and blown fuse |
Circuit breaker specifications | 30A |
Overcharge protection | Alarm and turn off charging after 1 minute |
PV charging |
|
Maximum PV open circuit voltage | 500Vdc |
PV operating voltage range | 120-500Vdc |
MPPT voltage range | 120-450Vdc |
Battery voltage range | 20-33Vdc |
Maximum output power | 4000W |
PV charging current range (can be set) | 0-80A |
Charging short circuit protection | Blown fuse |
Wiring protection | Reverse polarity protection |
Certified specifications |
|
Certification | CE(EN62109-1) |
EMC certification level | EN61000, C2 |
Operating temperature range | -15°C to 55°C |
Storage temperature range | -25°C ~ 60°C |
Humidity range | 5% to 95% (Conformal coating protection) |
Noise | ≤60dB |
Heat dissipation | Forced air cooling, variable speed of fan |
Communication interface | USB/RS485(WiFi/GPRS)/Dry node control |
Size (L*W*D) | 378mm*280mm*103mm |
Weight (kg) | 6.9 |
Product overview:
HF series is a new all-in-one hybrid solar charge inverter, which integrates solar energy storage &means charging energy storage and AC sine wave output.
Thanks to DSP control and advanced controlalgorithm, it has high response speed, high reliability and high industrial standard
Performance characteristics
· Full digital voltage and current double closed loop control, advanced SPWM technology, output of pure sine wave.
· Two output modes: mains bypass and inverter output; uninterrupted power supply
· Available in 4 charging modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging.
· Advanced MPPT technology with an efficiency of 99.9%.
· With the charging requirement (voltage, current, mode) settings, and suitable for various types of energy storage batteries.
· ON/OFF rocker switch for AC output control.
· Power saving mode available to reduce no-load loss.
· Intelligent variable speed fan to efficiently dissipate heat and extend system life.
· Lithium battery activation design, allowing access of lead-acid battery and lithium battery.
· 360°all-round protection with a number of protection functions. Such as overload,short circuit and over current.
· Supply of a variety of user-friendly communication modules, such as RS485 (GPRS,WiFi ), USB etc., and suitable for computer, mobile phones, Internet monitoring as well as remote operations.
· Lithium battery can be activated by both mains and PV
