Features：
Long life and safety：Vertical industry integration ensures more than 6000 cycles with 80% DoD.
Easy to install and use：Small size, minimizing installation time and cost Compact and stylish design suitable for your sweet home environment.
Intelligent：Each battery with independent BMS system manages power output smartly and effectively.
Scalability：You can use 4 batteries in parallel at the same time, and can provide a maximum of 20kwh for your use.
Compatiblity：Compatible with most of the available Hybrid inverters.Data sheet

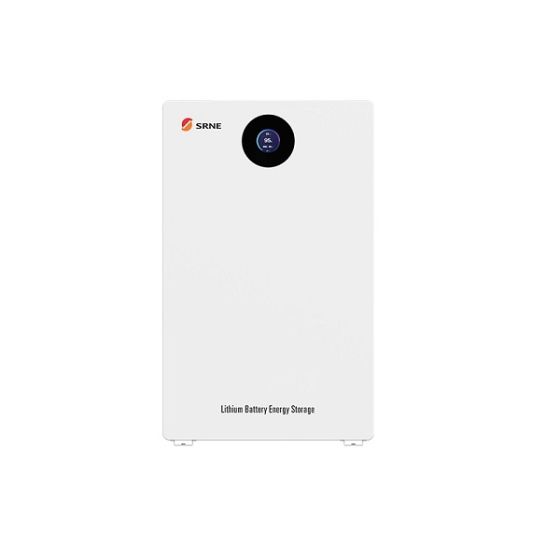

MODEL | SR-EOS10B |
MAIN INFO |
|
Rated Voltage | 51.2V |
Rated Capacity | 200Ah |
Battery Power | 10.24kWh |
Battery Type | LFP |
Crycling Lifespan | 6000 Cycles |
Lifetime | 20 Years |
Max. Parallel Capacity | 9 |
CHARGE&DISCHRAGE |
|
Max. Charging Voltage | 57.6V |
Over Discharging Voltage | 44.8V |
Max. Charging Current | 150A |
Peak Charging Current | 200A (3s) |
Max. Discharging Current | 200A |
Peak Discharging Current | 220A (3s) |
GENERAL |
|
Weight | 88kg,(194lb) |
Dimension(L*W*H) | 1014*620*191mm(3*2*0.6ft) |
Communication | CAN / RS485 / USB / WiFi / Bluetooth |
Storage Condition | 6 months @25℃;3 months @35℃;1 months @45℃ |
Charging Temp. Range | 0~45℃(32~113℉) |
Discharging Temp. Range | -10~45℃(14~113℉) |
Cooling Method | Neutral Cooling |
Protection Grade | IP65 |
STANDARD |
|
Transportation | UN38.3,MSDS |
Safety | EN55032,EN55024,EN61000-3-2,EN61000-3-3 |
