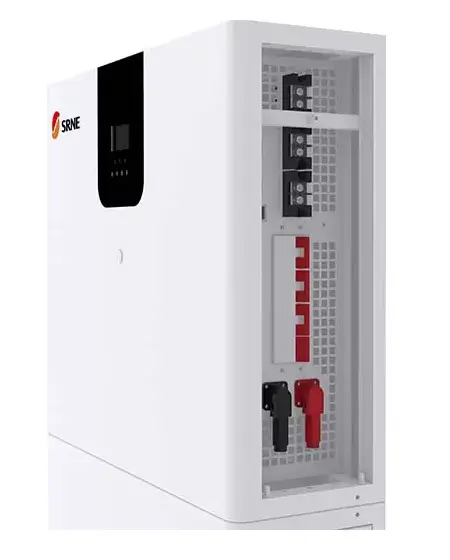

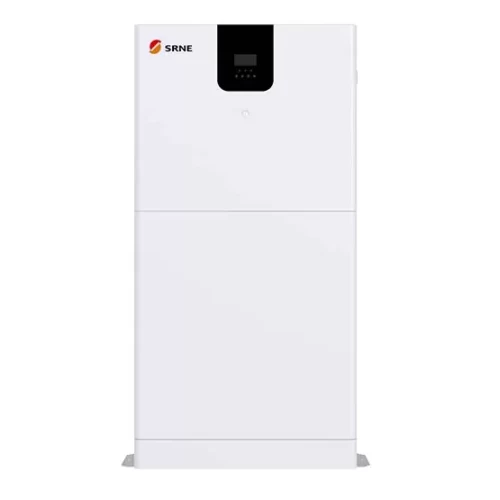

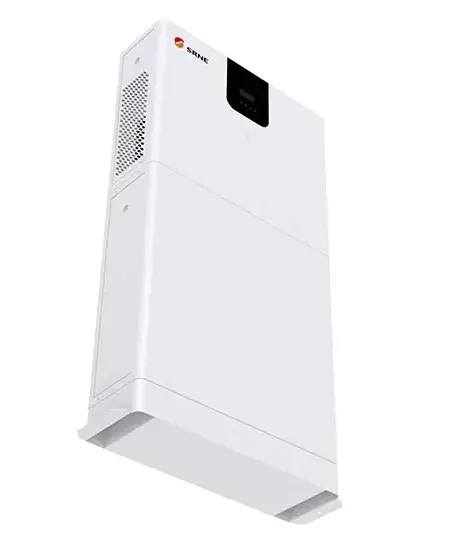

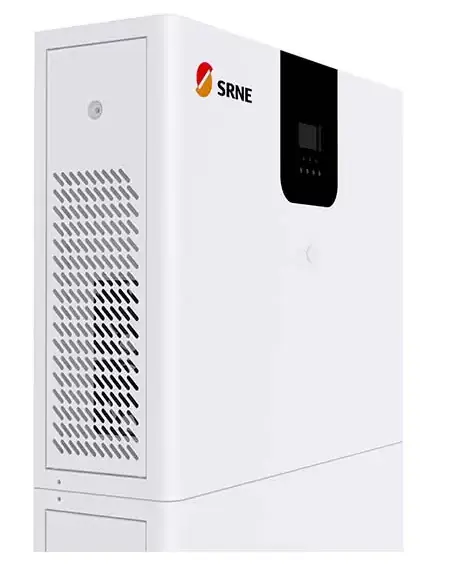

SRNE EOV Series Solar Storage System 3.5kwh

Description

Battery Technical Specification

• Battery Model: SR-EOV24-5.0A-E1

• Number Of Batteries: 1

• Battery Energy: 5.12KWH

• Battery Capacity: 200AH

• Weight: 100Kg

• Dimension: 1190mmL x 600mmD x 184mmH

• Battery Type: LiFePO4

• Battery Rated Voltage: 25.6V

• Battery Working Voltage Range: 22.4VDC – 28.8VDC

• Maximum Charging Current: 150A

• Maximum Discharging Current: 150A

• DOD: 80%

• Designed Life Span: 5000 Cycles

Inverter Technical Specification

• Inverter Model: SR-EOV24-3.5S-C1

PV Charge

• Solar Charge Type: MPPT

• Maximum Input Power: 4000W

• PV Charging Current Range: 0A-80A

• PV Operating Voltage Range: 120VDC-500VDC

• MPPT Voltage Range: 120VDC-450VDC

AC Charge

• Maximum Charge Power: 2240W

• AC Charging Current Range: 0A-80A

• Rated Input Voltage: 220VAC-230VAC

• Input Voltage Range: 90VAC-280VAC

AC Output

• Rated Output Power: 3500W

• Maximum Output Current: 30A

• Frequency: 50Hz

• Overload Current: 35A

Battery Inverter Output

• Rated Output Power: 3500W

• Maximum Peak Power: 6000VA

• Power Factor: 1

• Pated Output Voltage: 230VAC

• Frequency: 50Hz

• Auto Switch Period: <15ms

Environment Limit

• Communication: RS485 / CAN / WIFI

• Charging Temperature Range: 0°C to 45°C

• Discharging Temperature Range: -10°C to 45°C

• Operation Humidity: 5% to 85%

• Cooling Mode: Force-Air-Cooling @ 60bB

• Ingress Protection: IP20

• Operation Environment: Indoor

• Installation Method: Vertical

• Safety Certification: UN38.3,MSDS,EN55032,EN55024,EN61000-3-2,EN61000-3-3
